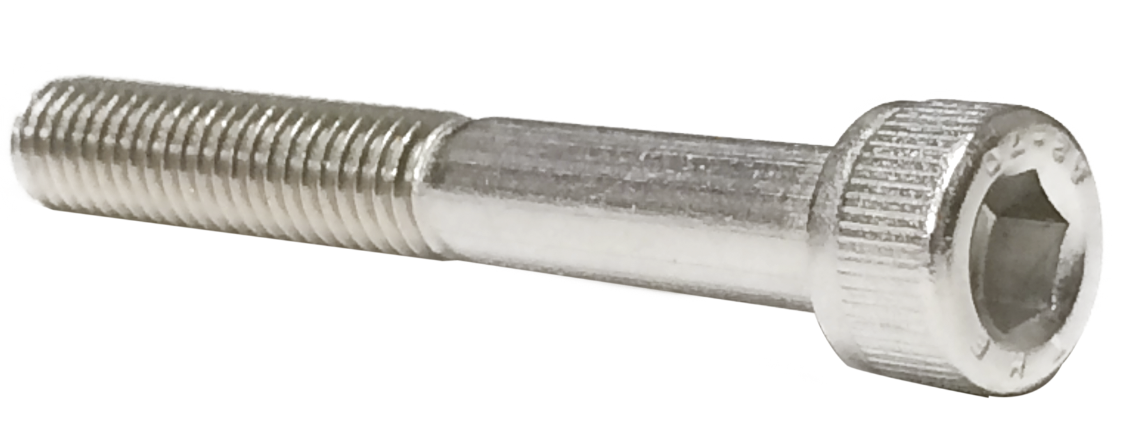

PT CYLINDRICAL HEAD INOX SCREW WITH INTERNAL HEXAGONAL

Product Description:

Partial Thread Cylindrical Screw to be used in conjunction with nuts and washers of the same material type. Walsywa supplies this bolt with diameters from M6 to M10.

SPECIFICATIONS

Dimensions: DIN 912

Thread: DIN 13 (ISO 965)– 6g

Material: DIN ISO A2 INOX

Finishing: Passivated

With partial Metric thread

TECHNICAL TABLE

Code Description Pitch (mm) Wrench (mm) Head diameter (mm) Max. head height (mm) Packaged quantity
800694 PAR CAL CIL SEXT INT RP M6 x 35 1,00 5 9,78 / 10,22 5,70 / 6,00 200
800695 PAR CAL CIL SEXT INT RP M6 x 40 1,00 5 9,78 / 10,22 5,70 / 6,00 200
800696 PAR CAL CIL SEXT INT RP M6 x 45 1,00 5 9,78 / 10,22 5,70 / 6,00 200
8006701 PAR CAL CIL SEXT INT RP M8 x 60 1,25 6 12,73 / 13,27 7,64 / 8,00 100
800704 PAR CAL CIL SEXT INT RP M10 x 45 1,50 8 15,73 / 16,27 9,64 / 10,00 100
